ZMGF28-12 Box Transformer



Get A Quote
Category:
Description

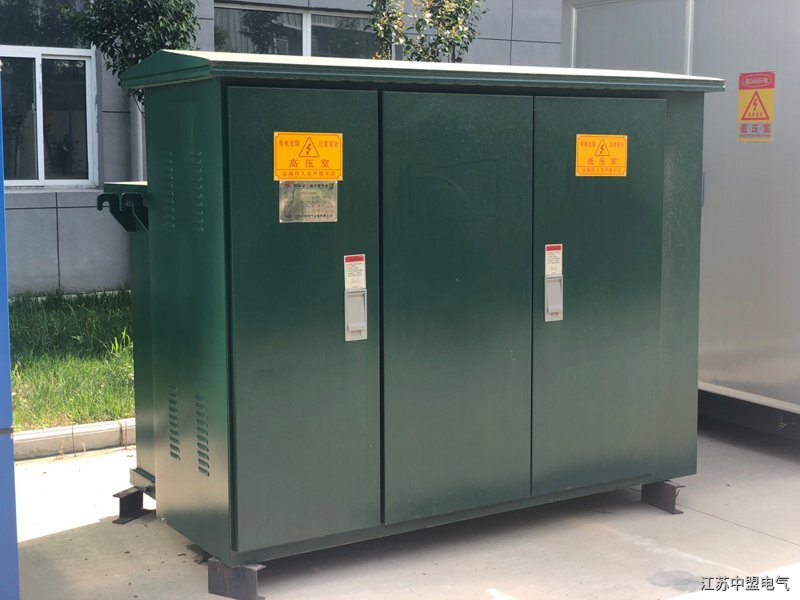

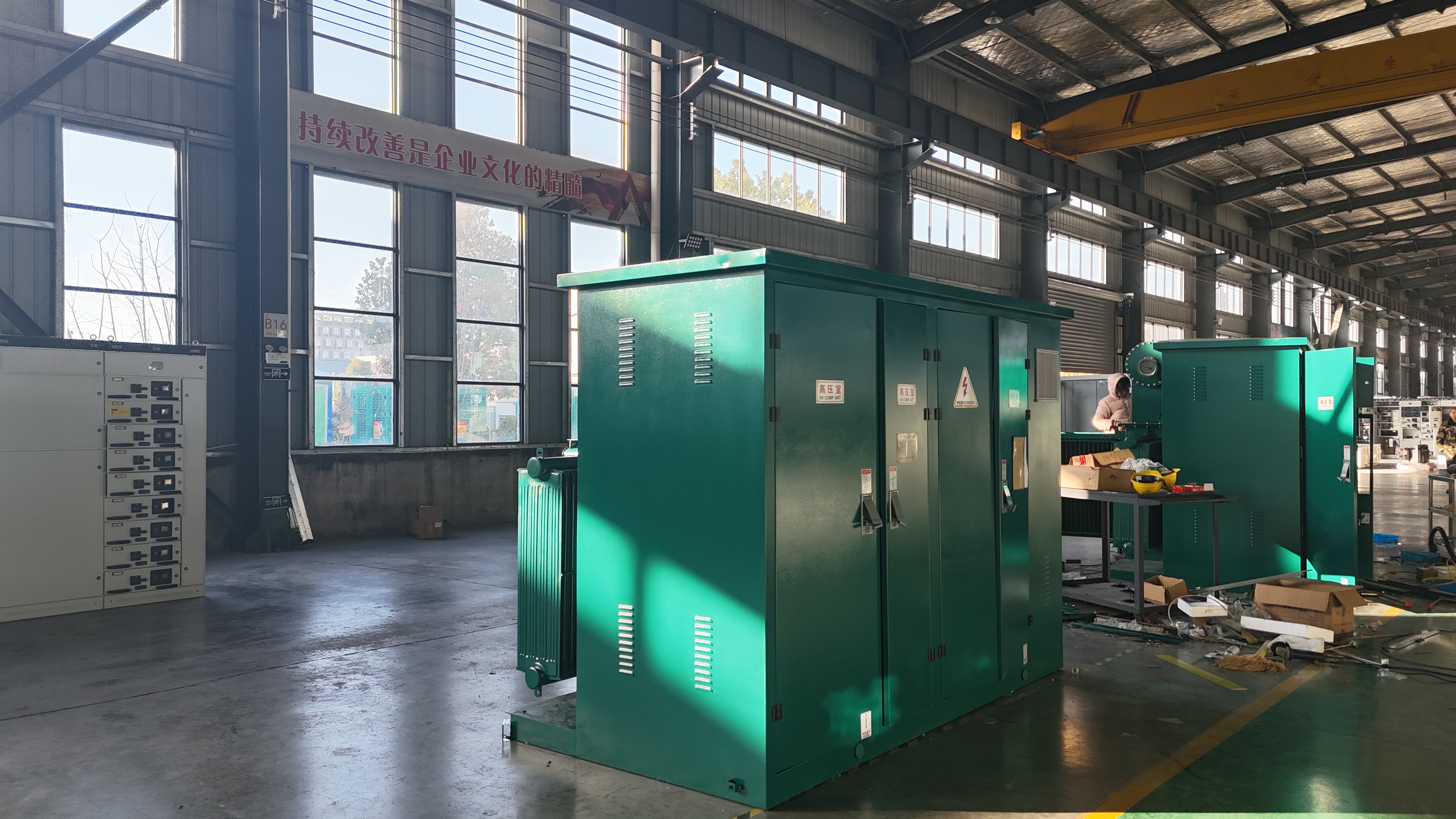

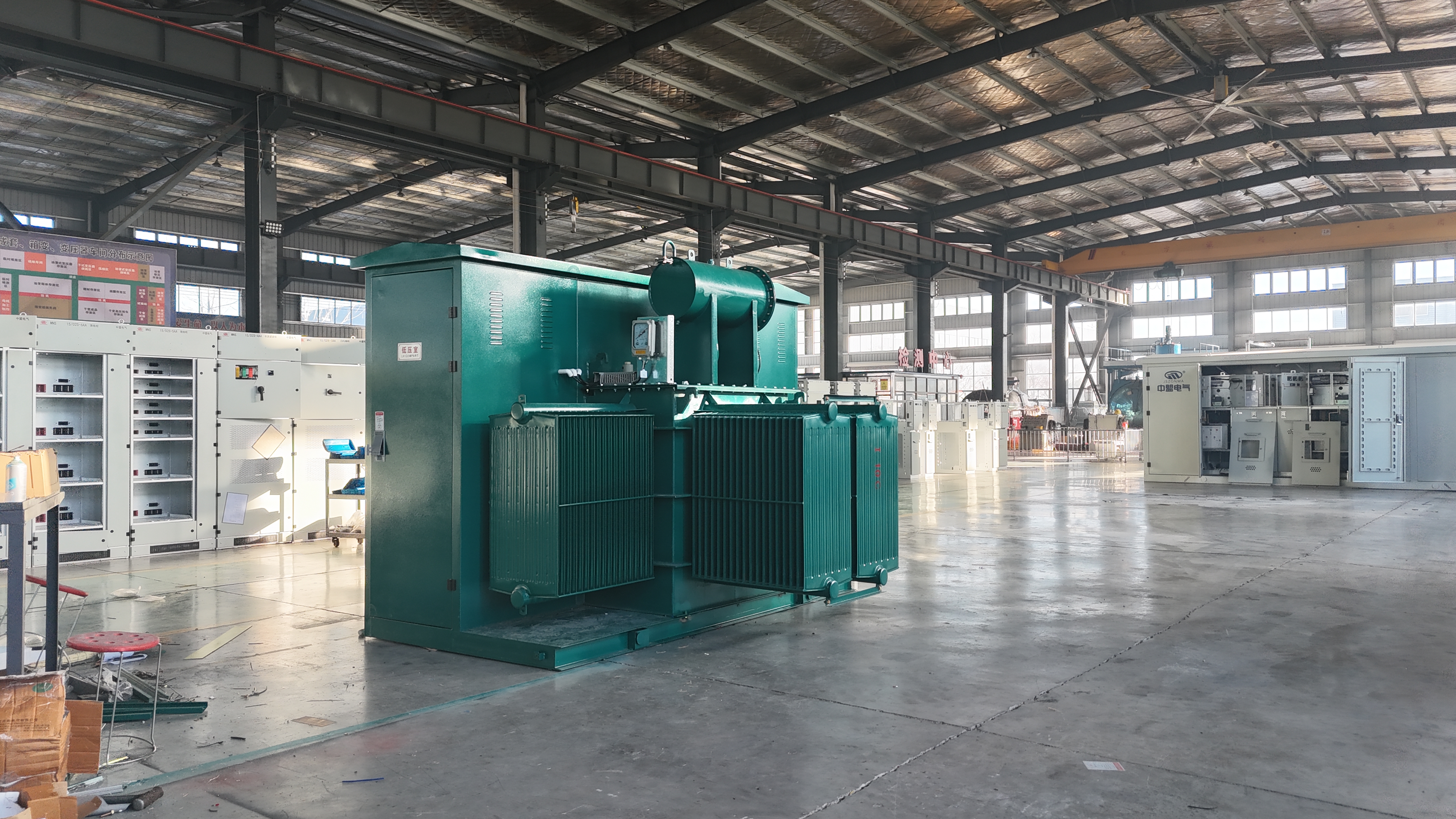

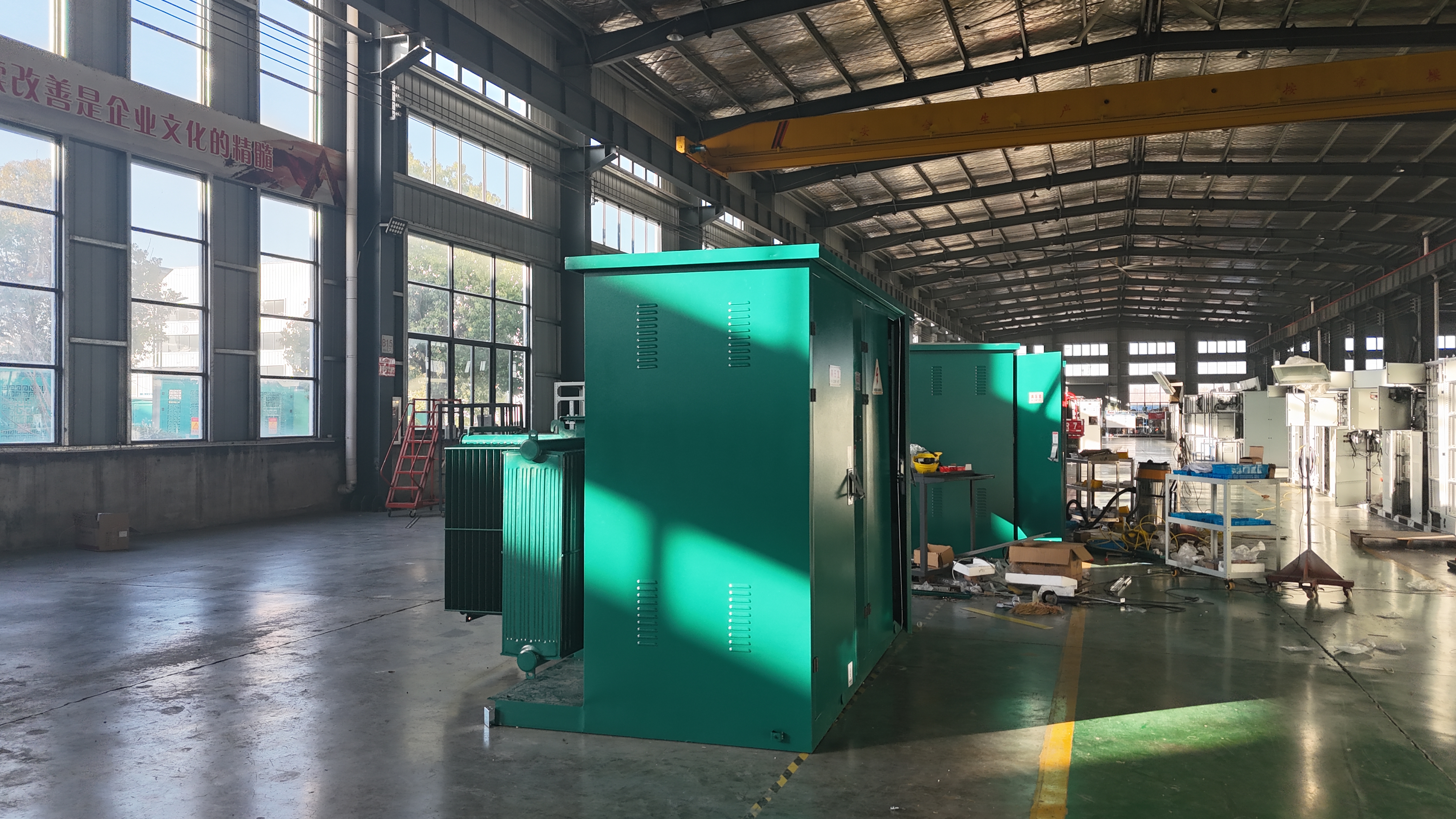

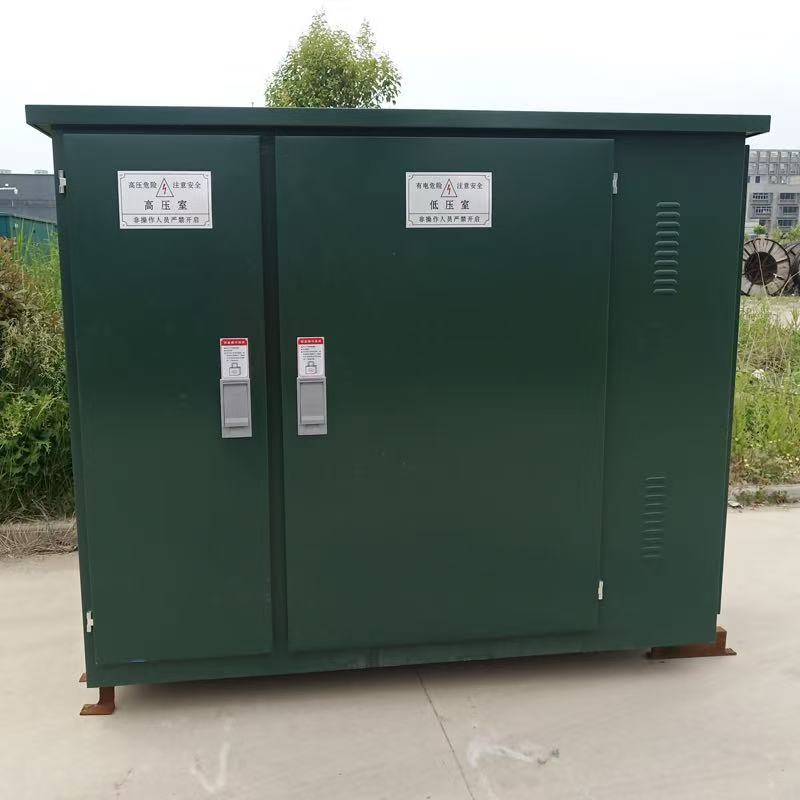

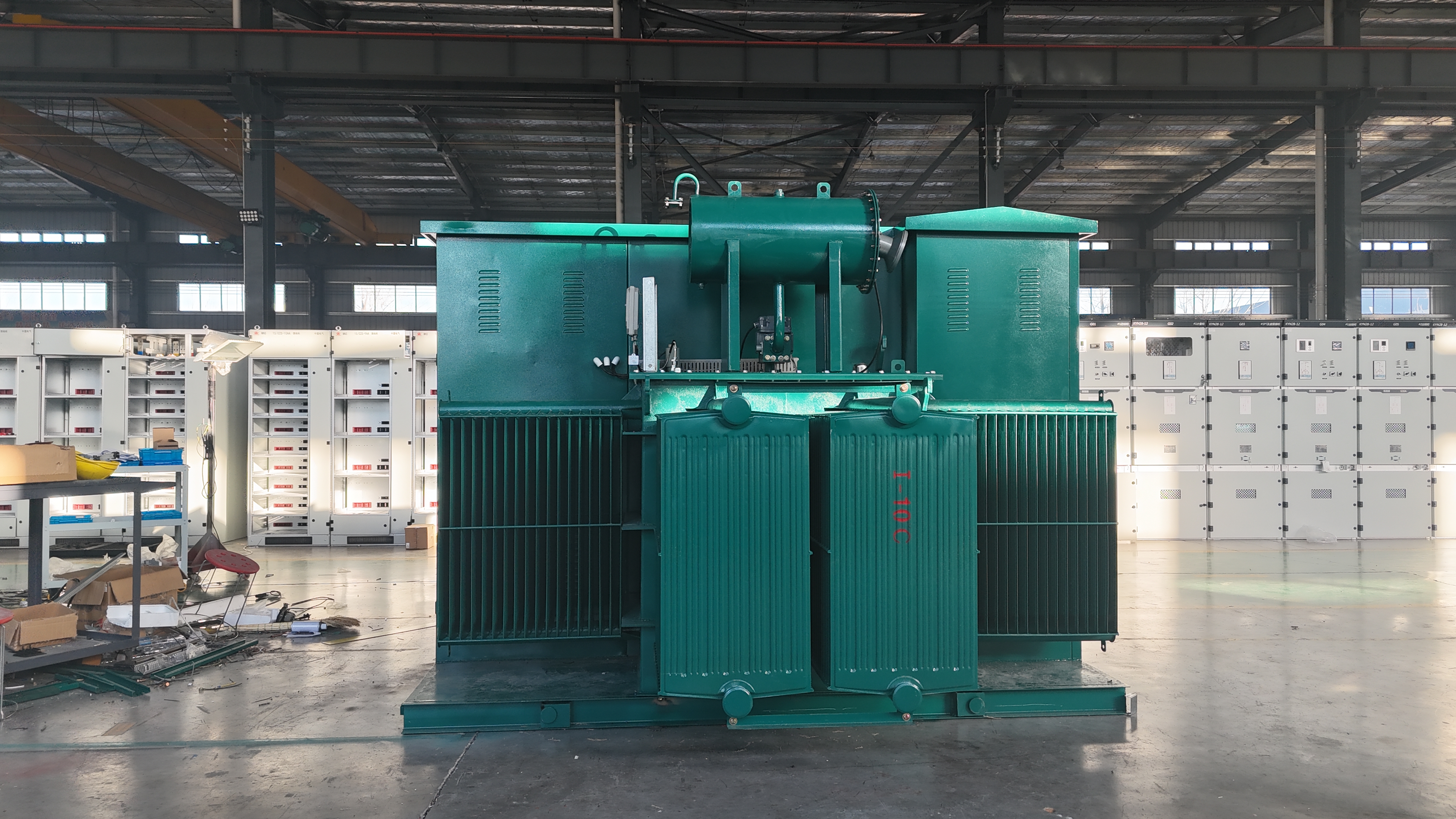

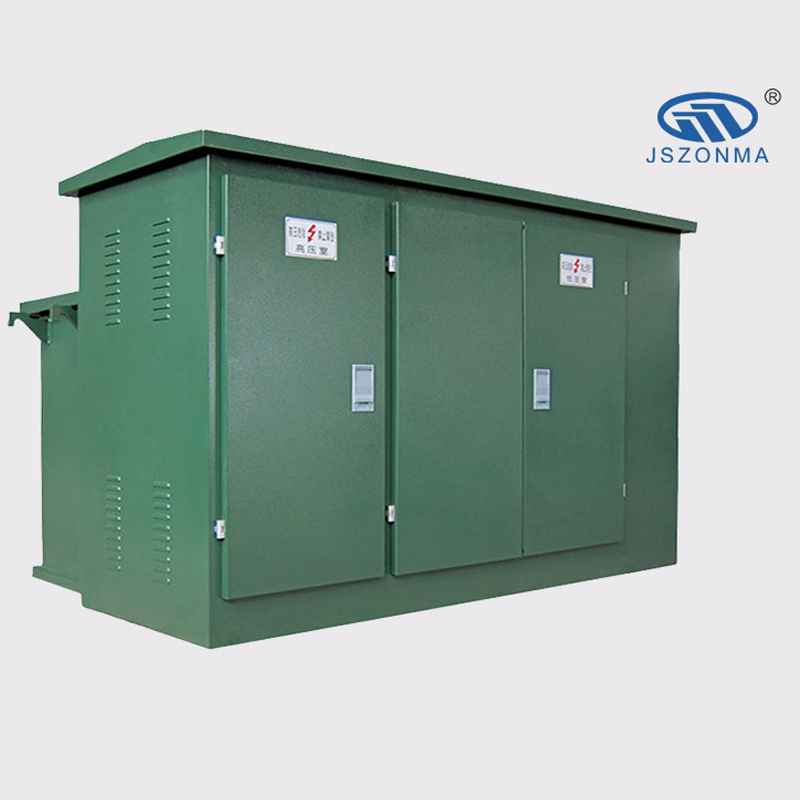

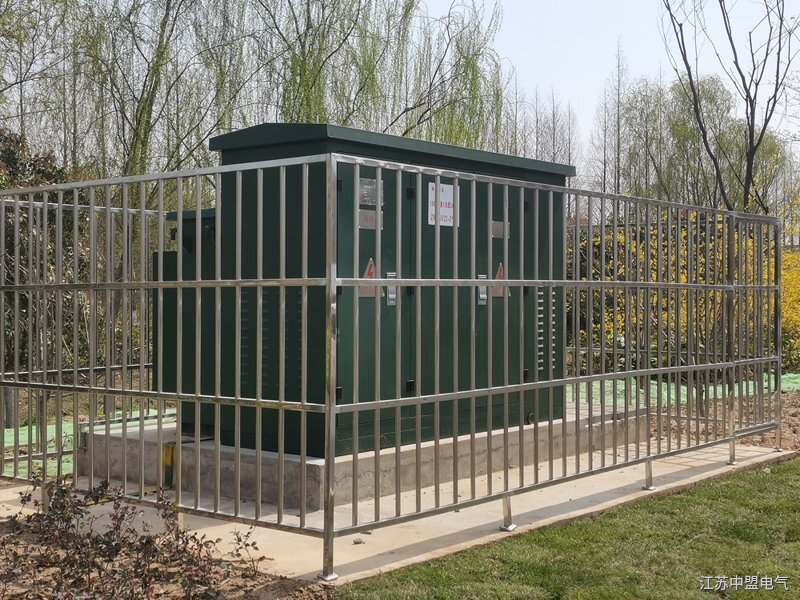

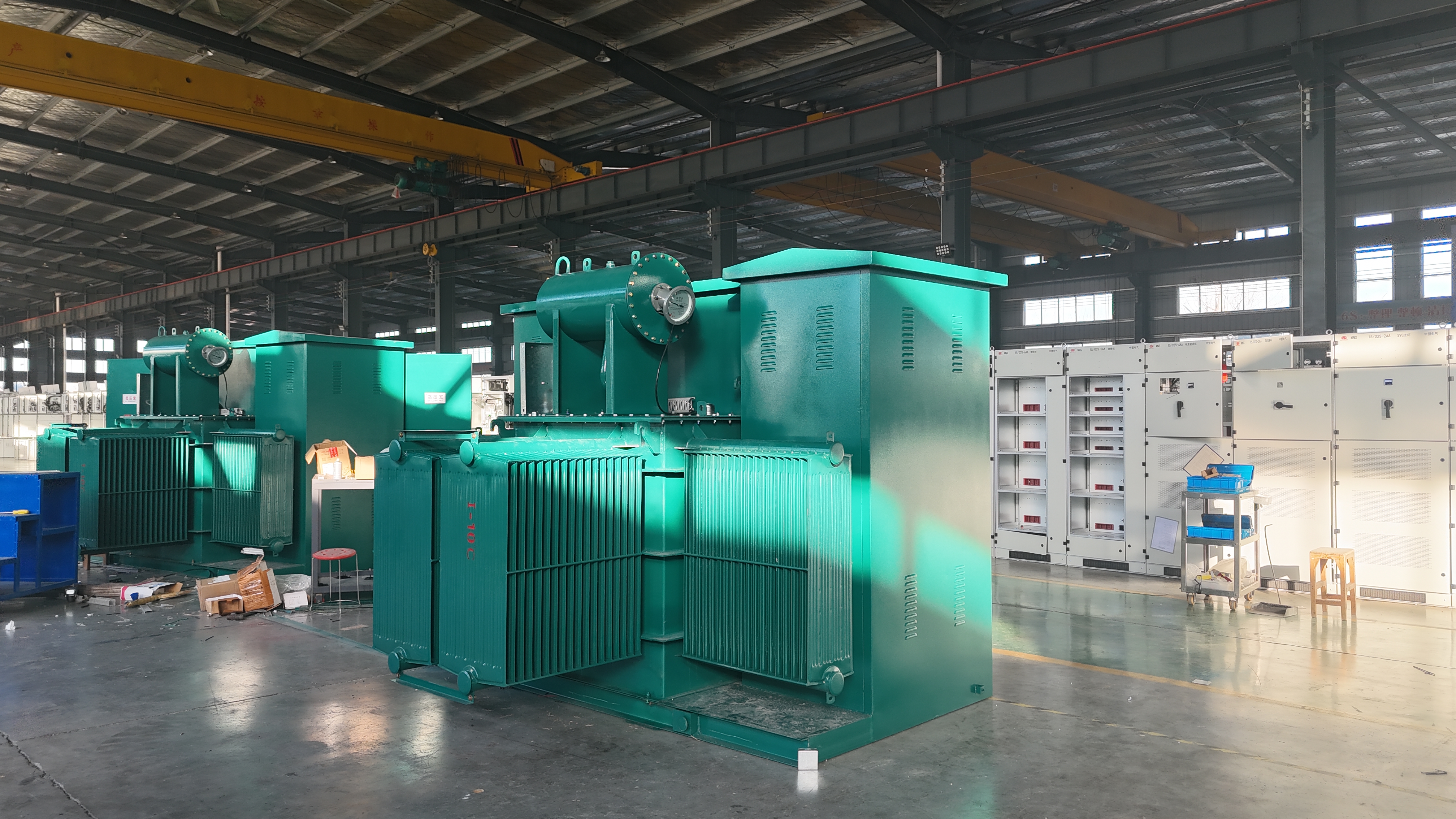

ZMGF28-12 Prefabricated Box type Substation (American style) This product is developed by absorbing advanced foreign technology and combining it with the actual situation in China. The entire product has the characteristics of small size, easy installation and maintenance, low noise, low loss, anti-theft, strong overload capacity, and full protection. Suitable for new residential areas, green belts, parks, stations, hotels, construction sites, airports, and other places. The ZMGF series prefabricated box type substation (American style) is suitable for use in 10kV ring network power supply, dual power supply or terminal power supply systems as a substation, metering, compensation control and protection device.

Features

① Fully insulated, fully sealed, maintenance free, reliable to ensure personal safety;

② Compact structure, volume only 1/3~1/5 of the same capacity European transformer, low height;

③ A split box structure can be used to avoid oil pollution in the transformer oil tank;

④ The high-voltage side adopts dual fuse full range protection, greatly reducing costs;

⑤ Can be used for both ring networks and terminals; The cable head can be urgently plugged and unplugged at a load current of 200A;

⑥ The box is made of honeycomb double layered composite board, which has the functions of insulation and heat dissipation.
